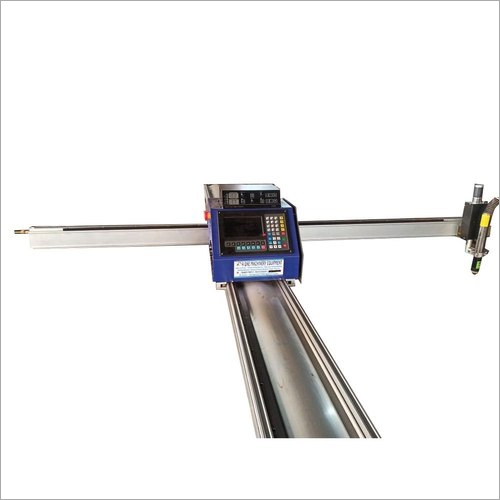

Gantry CNC Plasma Cutting Machine

Product Description

A computer-controlled cutting device that uses plasma technology to cut through different kinds of metal is known as a gantry CNC plasma cutting machine. It has a gantry that moves and supports the cutting torch along a vertical Y-axis and a horizontal X-axis. Metal cutting procedures can be carried out with accuracy and efficiency using CNC control and plasma cutting.

A gantry CNC plasma cutting machine has the following salient characteristics and elements:

1. A rigid gantry structure that spans the cutting area is often part of the machine. The cutting torch assembly, which is mounted on a gantry crossbeam, benefits from its support and stability. Movement along the X-axis is possible thanks to the gantry construction.

2. Cutting Table: The cutting table acts as the cutting material's work surface. It is made to endure the pressure and heat of plasma cutting. Slats or grates may be present on the table to facilitate appropriate airflow and the removal of debris during cutting.

3. CNC Control System: A CNC control system is a feature of gantry CNC plasma cutting machines. It reads digital design files and produces the appropriate cutting instructions. To correctly carry out the intended cutting pathways, the control system controls the movement of the gantry and cutting torch along the X and Y axes.

4. The primary device for creating the plasma arc and cutting through the metal is the cutting torch. A plasma torch head, consumables (such electrodes and nozzles), and a gas supply system (which includes gas selection and pressure control) are the typical components. The CNC system directs the torch to follow the pre-programmed cutting paths.

5. Height Control System: A gantry CNC plasma cutting machine frequently comes with a height control system to maintain the ideal cutting distance from the workpiece. This system may modify the torch height while cutting using a variety of techniques, such as arc voltage sensing or capacitive sensing, to guarantee constant cutting quality.

6. Software Compatibility: The gantry plasma cutting machine's CNC control system is compatible with a number of design software packages. The most often used file types are DXF, DWG, AI, and SVG. These files are imported by the machine's control system so that the cutting paths can be executed precisely.

7. Gantry CNC plasma cutting machines have safety features installed to safeguard operators and guarantee proper use. To prohibit access to the cutting area while it is in use, these features may include safety enclosures, emergency stop buttons, and safety interlocks.

8. Flexibility: Gantry CNC plasma cutting machines are flexible in that they can cut a wide range of metal types and thicknesses. They are appropriate for sectors including metal manufacturing, automotive, aerospace, and construction since they can produce straight cuts, bevel cuts, and complicated forms.

Depending on the brand and type, gantry CNC plasma cutting machines may have different specialised features, cutting capacity, and capabilities. It is wise to speak with the manufacturer or supplier to make sure the device satisfies your unique demands and application requirements.
